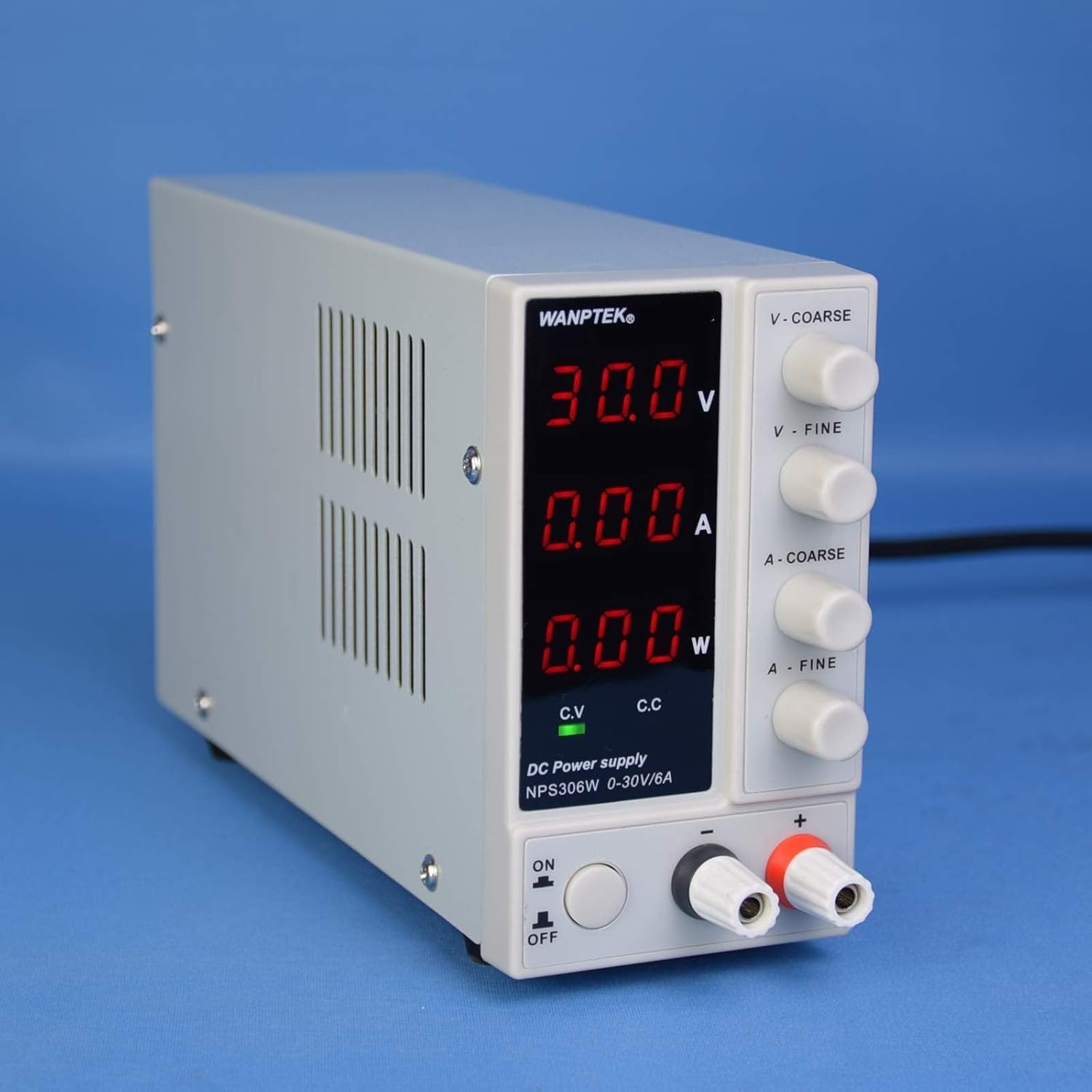

Hot DC Power Supply Variable Transformers for lab with Three Window Digital Tube Display Variable Bench Power Supply

Application This power supply is suitable for research institutes, laboratories, and factories, where the DC stable power supply is needed. Specification Model: NPS306W Net Weight: 1.3kg/.2.87lbs Gross Weight: 1.6kg/3.53lbs Package Size: 11 *17 * 29cm/4.33*6.69*11.42inch Product Size: 23*7*13cm/9*2.8*5.1inch Input Power：AC 110V, 60Hz Output Voltage: 0-30V Output Current: 0-6A Output Power: 180W Working Temperature：0 ℃ - 40 ℃ Relative Humidity: <80% RH Storage Temperature：-10 ℃ ~ 70 ℃ Relative Humidity: <70% RH Constant Voltage Operation: Voltage Stability：0.1% Load Stability: 0.2% ± 3MV Ripple Voltage: ≤ 0.5% Vp-p Continuously Adjustable from 0 to Rated Voltage Constant Current Operation: Current Stability: 0.1% ± 3mA Ripple Current: ≤ 0.5% Vp-p Recovery Time: ≤ 500 μ s Temperature Coefficient: ≤ 100ppm / ℃ 0 to Rated Current Continuously Adjustable Head Display : Three Window Digital Tube Display: Voltage, Current, Power Display Accuracy: 0.5% + 3 Words Display Staging Rate: Voltage 0.1V, Current 0.01A, Power 0.1w/1w Package Included 1 * DC Power Supply 1 * Power Cord 1 * Output Line 1 * Operation Manual

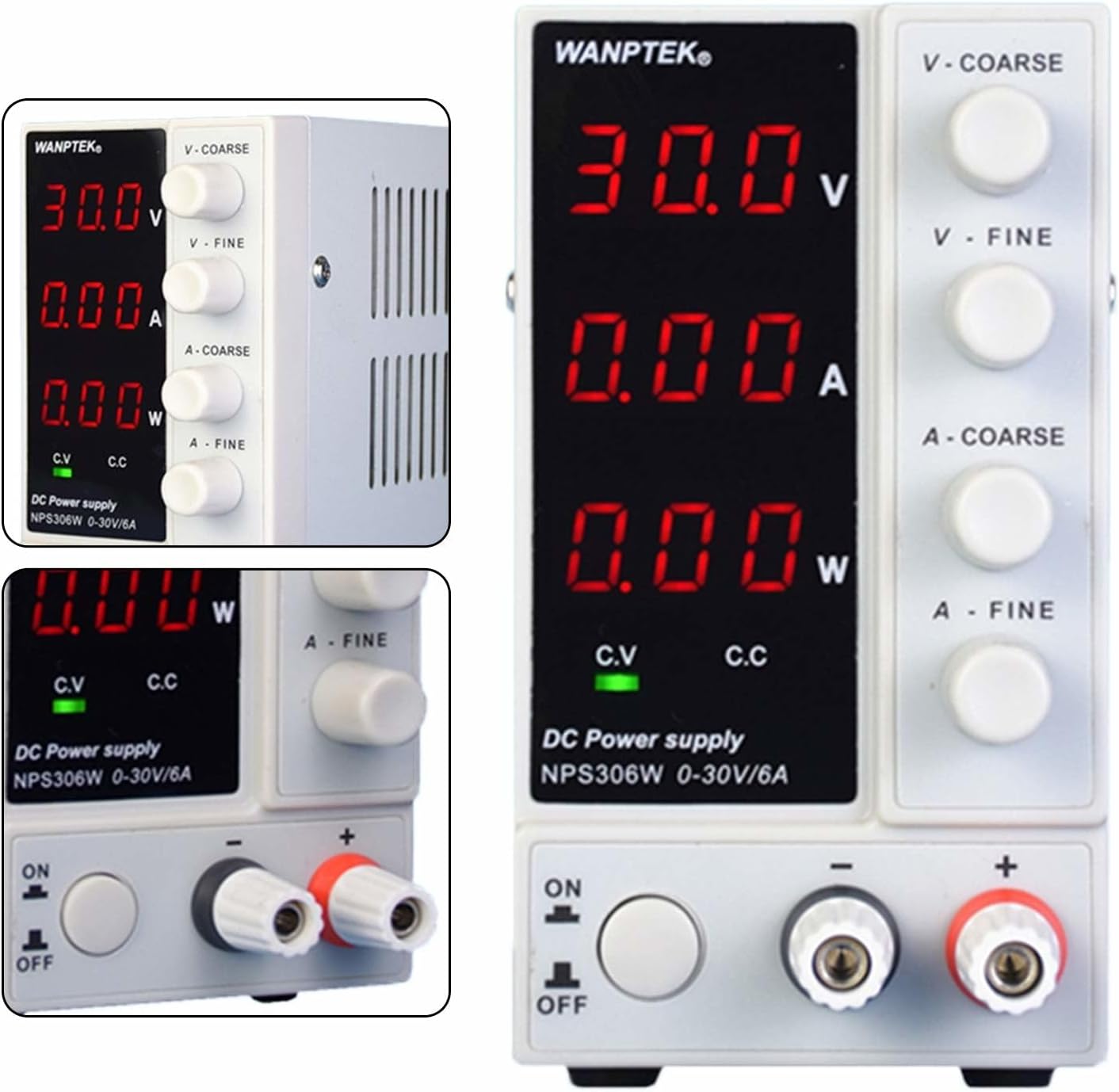

• Equipped with a digital readout that simultaneously shows voltage, current, and power output values. This simultaneous display allows convenient monitoring of operational parameters during testing procedures
• Accepts input voltage of 115V±5V, supporting use in regions with varying power standards. This compatibility enables deployment across different geographical locations without requiring external voltage conversion
• Maintains consistent voltage and current output through regulated control systems. The rotary adjustment mechanism provides smooth transition between settings while helping maintain stable output characteristics

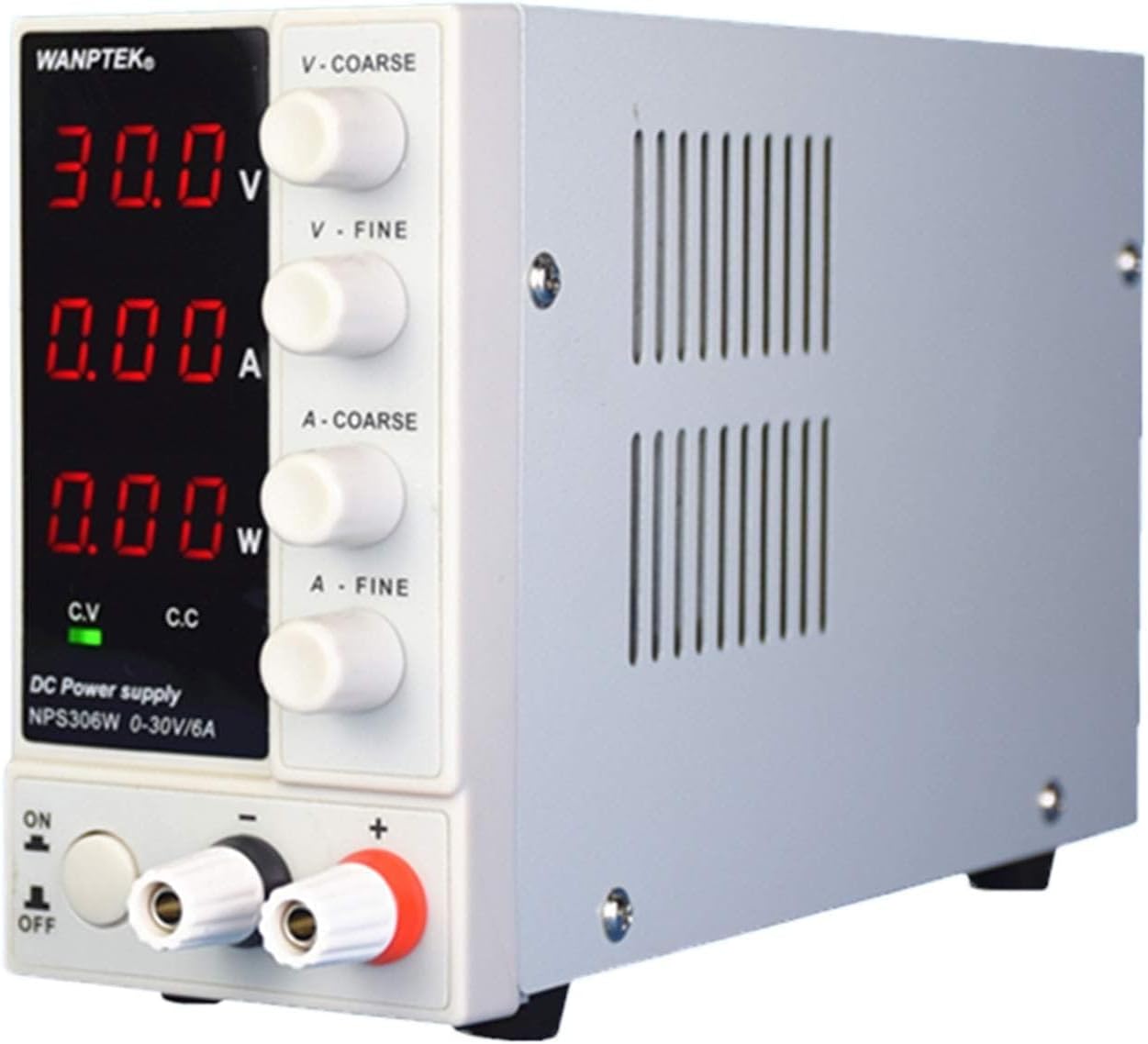

• The housing incorporates strategically positioned ventilation patterns that promote internal heat dissipation. This design consideration supports extended operation periods by helping maintain appropriate operating temperatures
• Features straightforward switch activation and spiral knob controls for voltage/current adjustment. The intuitive interface requires minimal training for basic operation while providing essential power supply functions
