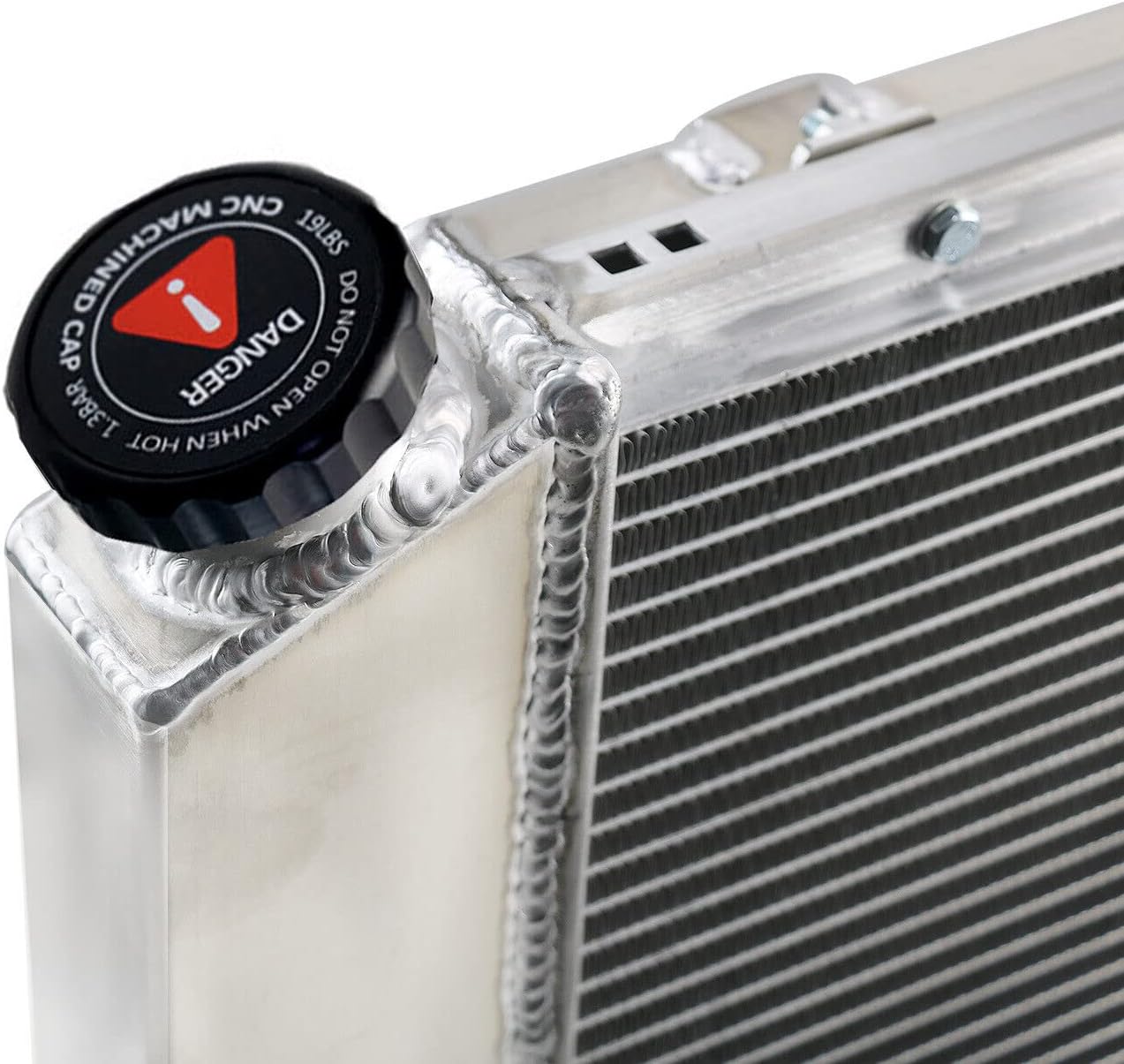

3 Row All Aluminum DPI161 RAD161 Radiator for 1968-1990 Chevy/GMC Chevelle El Camino C/K/G/P Series C10 C20 C30 Truck Pickup Suburban for Buick GM Models Radiators Shroud 2 x 12" Fan Relay

FitmentFor 1971-1990 Buick LeSabre/Reatta/Electra/Riviera/Century 3.0L 3.1L 3.8L 4.1L 4.3L L6/4,4L 4.9L 5.0L 5.7L 6.6L 7.5L V8For 1971-1982 Cadillac DeVille/Eldorado/Seville/Calais/Fleetwood 4.1L 5.7L 6.0L 7.7L 8.2L V8For 1971-1990 chevy C/K Series Bel Air Caprice Malibu Chevelle 3.8L 4.1L L6/4.4L 5.0L 5.7L 6.6L 7.4L V8LFor 1972-1980 GMC C/G/K Series Jimmy 4.1L 4.8L L6/5.0L 5.7L 6.6L V8For 1972-1988 Oldsmobile Custom Cruiser Toronado Vista Cruiser Delta 88 3.8L 4.1L L6/4.1L 4.3L 5.0L 5.7L 6.6L 7.5L V8For 1972-1975 Plymouth PB200 Satellite Barracuda 3.7L L6For 1972-1973 Pontiac Bonneville Catalina Grand Am GTO LeMans 4.1L L6/5.7L 6.6L 7.5L V8Radiator DetailsRow Count: 3 RowUpper Inlet: 1.57in located on driver sideLower Outlet: 1.5in located on passenger sideSurface Finish: Aircraft Grade Raw AluminumOEM style brass petcock drainCNC machined filler neck and capFans SizeMaximum Fan CFM: 2300±200 cfmFan Diameter (in): 12.050” Thickness (in): 2.500” Number of Blades: 10 bladesMaximum Fan RPM: 2,250 rpmBlade Material: PlasticAmp Draw: 12.70 ampsThermostat KitRED + connect directly to battery.WHITE wire to ignition switch power source.BLACK goes to thermos switch.BLUE wire goes to the Fans.Part NumberManufacturer Part Number: CC161, MC161, DPI161, 161, CU161, RAD161Interchange Part Number: GM3010319, 3027896, 3028147, 3029602, 3030094, 3030095Other Part Number: Q161, 3020455, 3020457, 3022716 3023563, 3023593, 3023837

• 3 Row Core Radiator for 1971-1979 Chevy Caprice/Impala, for 1975-1979 Chevy K10, for 1975-1985 Chevy K20, for 1977-1986 Chevy K30, for 1972-1977 Oldsmobile Cutlass, 66 67 68 69 70 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88
• Core Size: 28.27"H x 16.85"W x 1.73"T; Overall Size: 33.66"L x 18.50"W x 5.51"H; Inlet/Outlet: 1.50"/1.57"; Transmission oilcooler: φ32*215*G1/4(Z)
• High Performance. Full AA5052 Aircraft Aluminum craftsmanship radiator & exclusive tube design that dramatically increases cooling efficiency by up to 30%~45%, strong and durable, 100% welded by TIG, No Epoxy. 100% Leak Tested
• Easy to Install. Meticulously built to superior OE standards for a precise fit, direct bolt-on replacement. No Drilling or Modifications Needed for Installation
• Crafted by our professional team using the highest-grade materials for exceptional longevity.
